0.6/0.3 Kw 4/8 Pole Geared motor

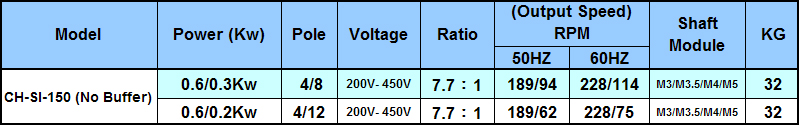

SI-150 Crane Gear Motor

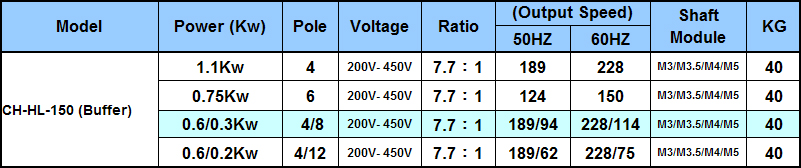

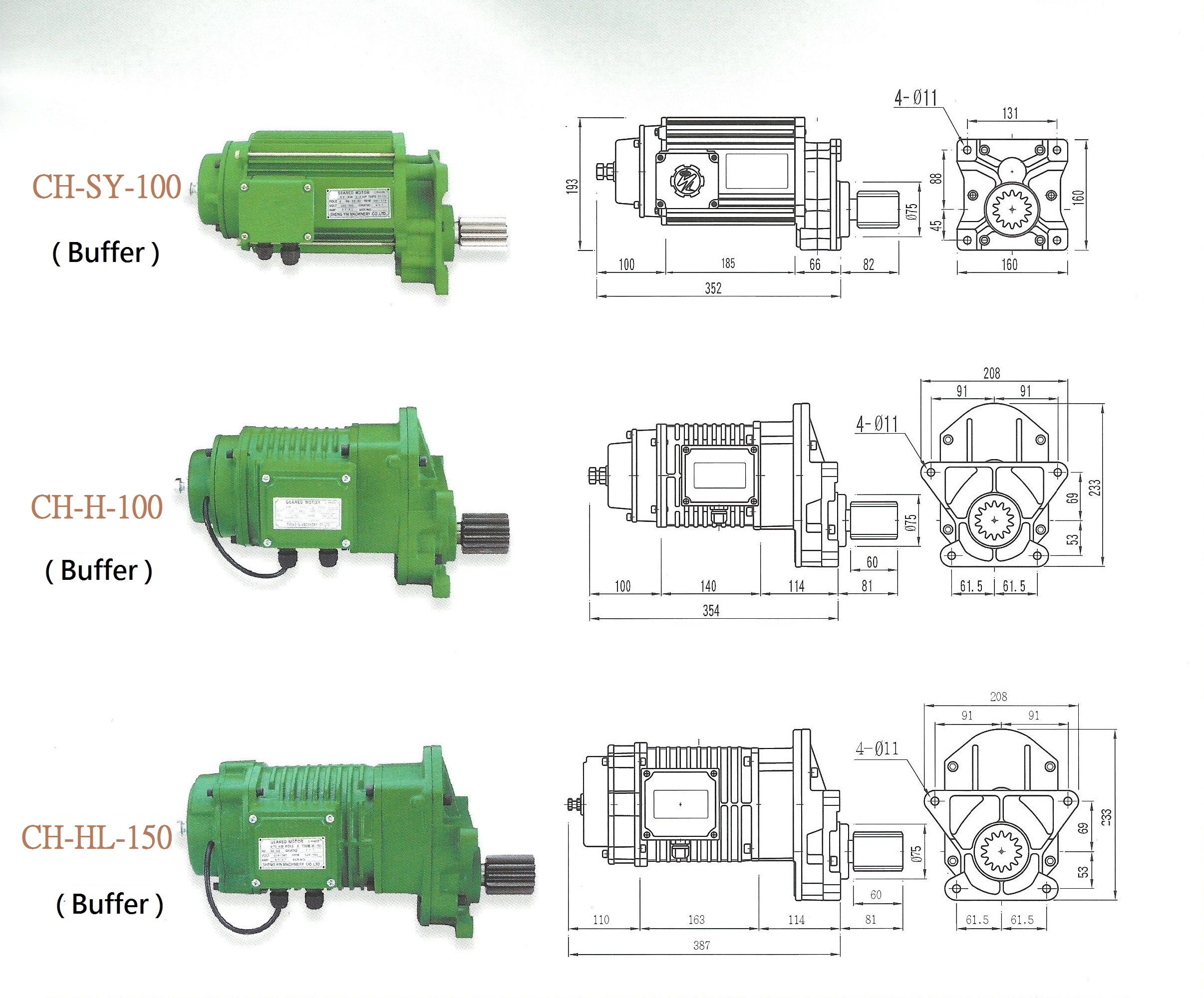

CH-HL-150 Crane Gear Motor


CH- F-150 Crane Gear Motor

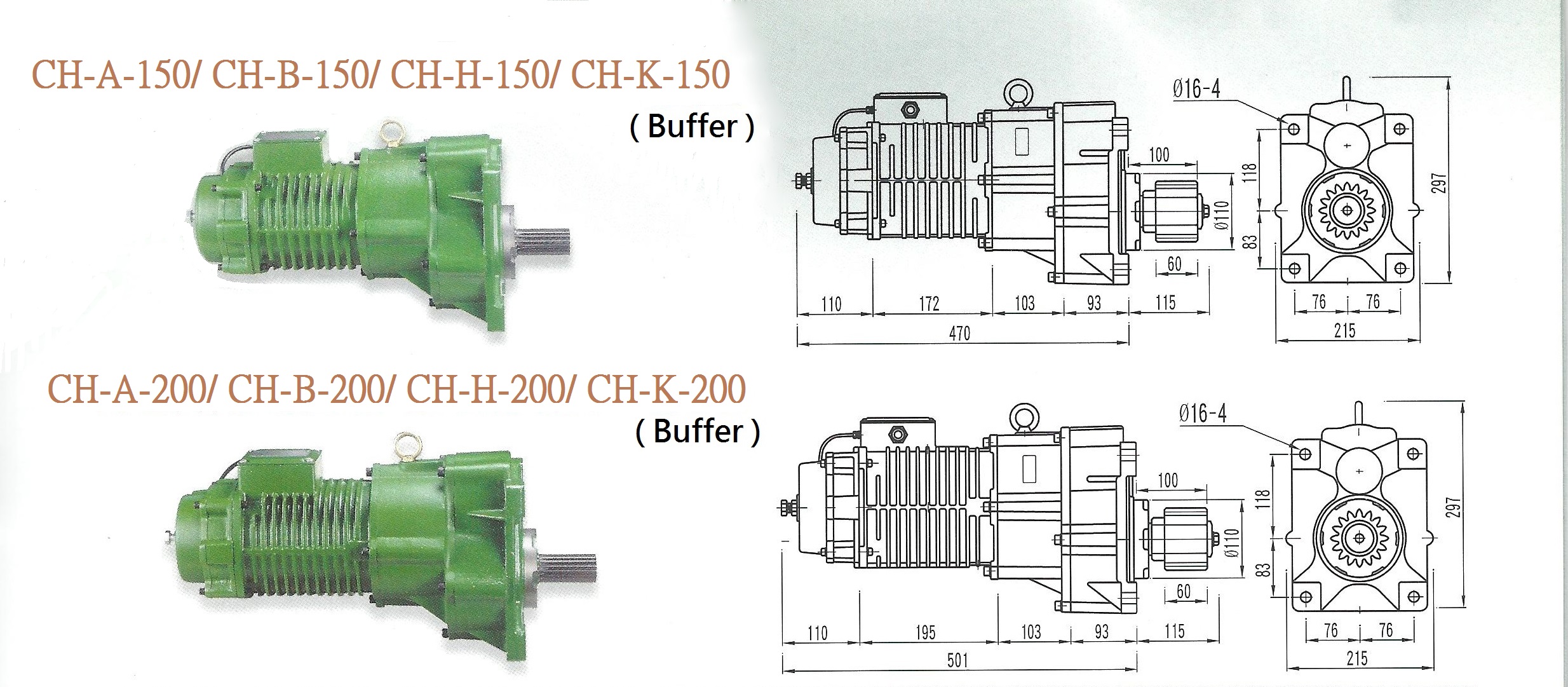

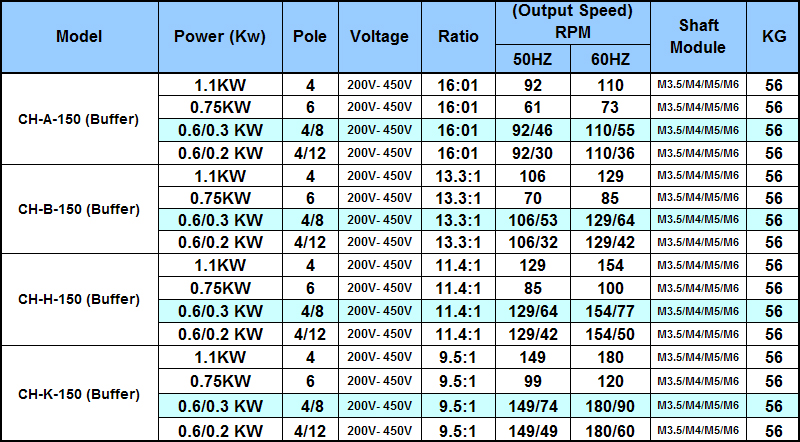

CH-A-150/ CH-B-150/ CH-H-150/ CH-K-150 Crane Gear Motor

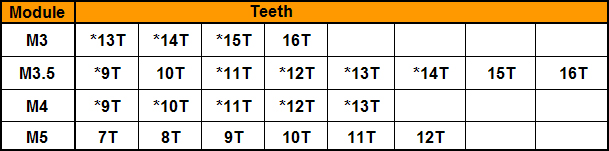

Solid pinion
SI-150/CH-HL-150 Crane Gear Motor

*Remark: There is 80mm in length of solid pinion in addition to 60mm.

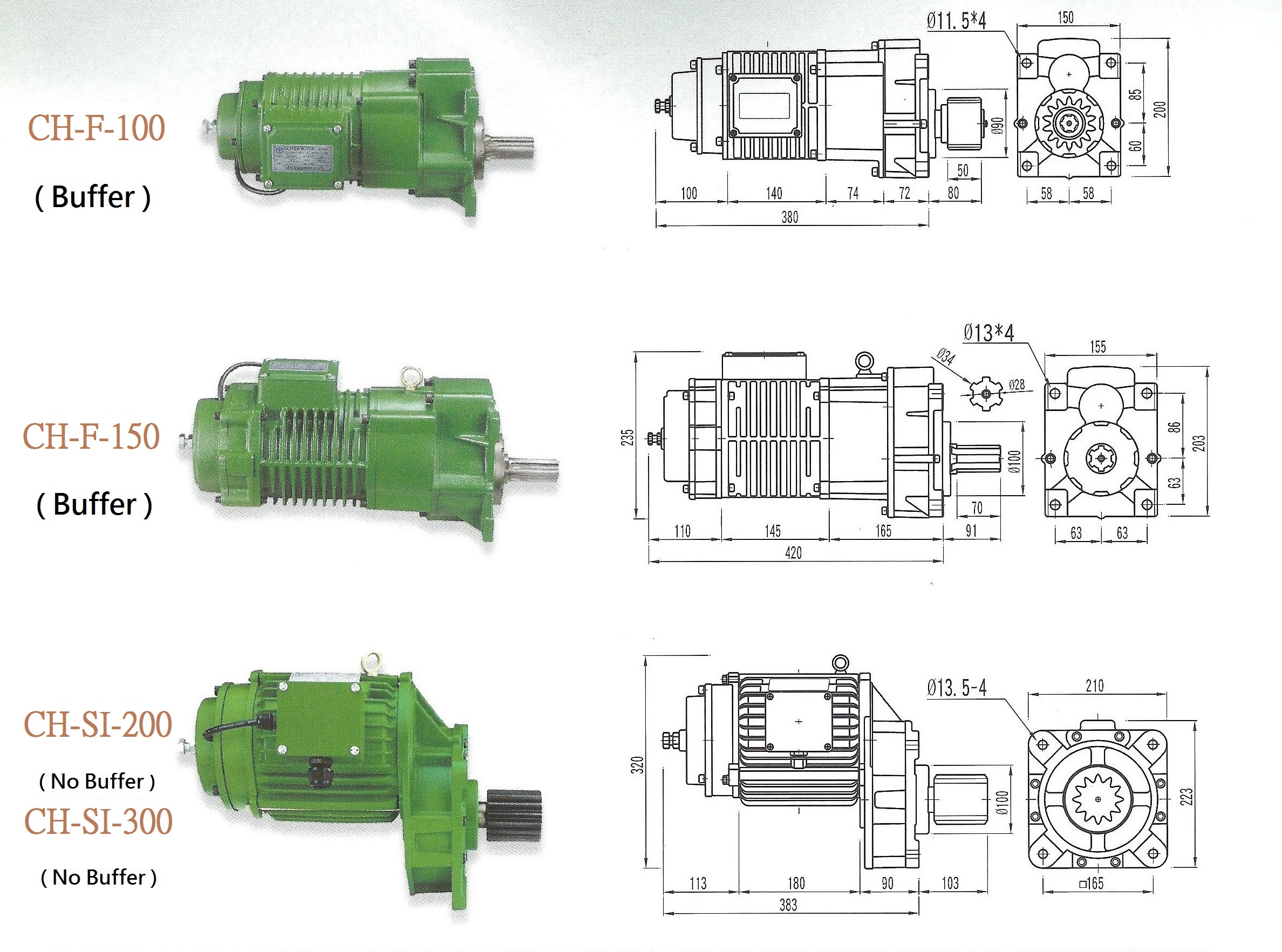

CH- F-150 Crane Gear Motor

*Remark: The length of standard solid pinion is 50mm.

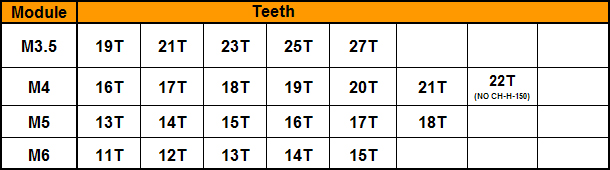

CH-A-150/ CH-B-150/ CH-H-150/ CH-K-150 Crane Gear Motor

*Remark: The length of standard solid pinion is 60mm.

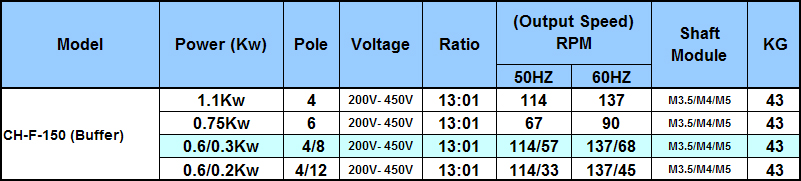

0.6/0.3 Kw 4/8 Pole Geared motor

1. ITS crane gear motor is long service-life and high performance.

2. Our gear motor is less noise and good cooling effect.

3. ITS motor is high quality FC25 cast iron material gearbox with SNCM21 alloy steel gears, so it is very durable and shock resistant.

4. High strength of output torque and low backlash of the motor buffer brake.

5. Taiwan ITS crane gear motors are ISO, CE, and 3C licensed approved quality.

6. It widely used as crane, blender, metallurgy and many kinds of project.

7. Precise speed ratios and smooth transmission.
